Video Door Phones and Door Bells
ONETOUCH 10 INCH ANDROIDSMART SIP VIDEO DOOR INTERCOM
• 10 inch High Res Touch Screen, SIP V.2
• Android 6 , Can Host all main stream APPS
• Home Automation Integration
• Interface : Wired LAN + Wireless
• Contact Directory
• Built in 8 Zone Alarm
• SD Card Slot
• Record Video and Images of Visitor
• PoE 802.af
• Colour : Black
ONETOUCH 10 INCH ANDROIDSMART SIP VIDEO DOOR INTERCOM
• 10 inch High Res Touch Screen, SIP V.2
• Android 6 , Can Host all main stream APPS
• Home Automation Integration
• Interface : Wired LAN + Wireless
• Contact Directory
• Built in 8 Zone Alarm
• SD Card Slot
• Record Video and Images of Visitor
• PoE 802.af
• Colour : Black
ONETOUCH 7 INCH ANDROID
SMART SIP VIDEO DOOR INTERCOM
• 7 inch High Res Touch Screen , SIP V.2
• Android 6, Can Host all main stream APPS
• Interface : Wired LAN + Wireless
• Contact Directory
• Built in 8 Zone Alarm
• PoE 802.af
• Colour : Black and Silver
ONETOUCH 7 INCH SMART
SIP VIDEO DOOR INTERCOM
• 7 inch High Res Touch Screen, SIP V.2
• Audio Calling Apt to Apt
• Contact Directory
• Built in 8 Zone Alarm
• SD Card Slot
• Record Video and Images of Visitor
• PoE 802.af
• Colour : Silver and Black
ONETOUCH 7 INCH SMART SIP
VIDEO DOOR INTERCOM
• 7 inch High Res Touch Screen, SIP V.2
• Audio Calling Apt to Apt
• Contact Directory
• Built in 8 Zone Alarm
• SD Card Slot
• Record Video and Images of Visitor
• PoE 802.af
• Colour : Silver and Black
ONETOUCH SMART SIP
VIDEO ENTRY STATION
• Single Button Video Entry Station
• 2 MP High Res Camera with 125 degree angle
• Built in Bluetooth ( BLE ) + Mifare /NFC Access Reader
• 1 Relay Port to Control Door
• Advance Motion Sensor
• Capture Visitor Snapshot
• SD Card Slot to Capture Visitor Video and Image
• ONVIF , Dual Stream Protocol
• Wiegand Port For Access Control Integration
• IP65 Grade
• Installation: Wall Mount
ONETOUCH SMART SIP
VIDEO ENTRY STATION
• Single Button Video Entry Station
• 2 MP High Res Camera with 125 degree angle
• Built in Bluetooth ( BLE ) + Mifare /NFC Access Reader
• 1 Relay Port to Control Door
• Advance Motion Sensor
• Capture Visitor Snapshot
• SD Card Slot to Capture Visitor Video and Image
• ONVIF , Dual Stream Protocol
• Wiegand Port For Access Control Integration
• IP65 Grade
• Installation: Wall Mount
System：Android 6.0
CPU:64bit 4 core Cortex-A53
ROM: 8G
RAM: 1G
Screen：8″IPS screen
Resolution：1280*800
Button: Virtual Button on touch screen
Communication method:TCP/IP (RJ 45),RS 485,WiFi, Tuya Zigbee 3.0(Optional)
Size: 118*198*13 mm
Microphone: 36 DB
Speaker: Single Speaker, 8Ω1W
PoE: 48 V PoE 802.3 af/at ( Optional)
Operating System：Android 10.0
CPU: A133
Quad-core ARM Cortex-A53@1.5GHz
ROM: 8G
RAM: 2G
Screen: 10''IPS Capacitor Touch Screen,1280*800Piexl
Memory: 2G RAM,8G flash
Communication: RJ45(TCP/IP),WiFi
Expanded Port: Doorbell,8CH Port, TF card slot, USB port
Power Supply: DC 12V/1A，Standard PoE
Size: 247*155*12.4(mm)
Installation method: indoor wall mounting
Color: Black
Working Temperature: -10°C～ +55°C
Relative Humidity：10% ～ 94%RH
Installation method: Indoor wall mounting

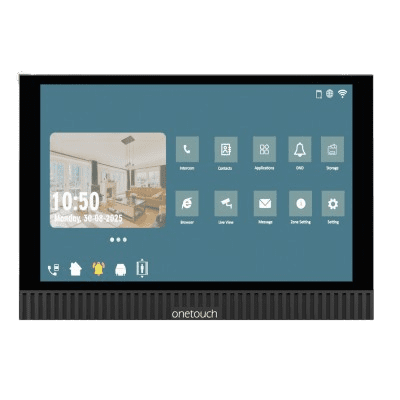

Android 14 OS
• SIP V.2 Based Video Intercom
• Support Community Contact Directory
• 10" Capacitive HD Touch screen
• 1024*800 Screen Resolution
• 4 GB Memory 16 GB Storage
• 2.4/5Ghz Dual Band Wi-Fi
• SD Card Support ( up to 512 GB )
• H.265 video compression
• ONVIF IP Camera Viewing
• Visitor Snapshot / Recording
• Voice Messsage
• Connect 2 Video Doorbell with Indoor
Station Directly
• Sensor Integration Wired / Wireless
• Smartphone Integration
• Digital Photo Frame
