Alarm System and Sensors
Wired Sensors
GAS LEAK DETECTOR
• Wired
• Applicable gas : Coal, Natural, LPG
• Alarm Relay : NO//NC Contact
• Alarm density : 10% LEL (Wired)
• Alarm density : LEL % Adjustable (Wireless)
• Alarm mode : Sound/LED Indicator
• Alarm Flash Visibility : 3m
• Alarm speaker volume : ≥70 db at 1m
• Installation : Wall Mount / Ceiling Mount
• Dimension : 107*107*35mm
• CE,EN50194 Certified
• Integration with any 3rd party intrusion panel
• Power Provision : 12V DC / 220V AC (Wired)
• Power Provision : Via 5V USB Adapter (Wireless)
PANIC SWITCH
• Wired
• ABS material
• Key reset
• Alarm output : NC/NO option
• Function : Emergency Push Button
• Output : NC/NO/COM
• Electrical life : More then 200,000 times
• Dimension : 86*86*26mm
• Installation : Flush Mount
• Integration with any 3rd party intrusion pane
OCCUPANCY SENSOR
• Wired
• 230V Occupancy Sensor
• Passive Infrared
• 360 Deg
• 5 Mtr range
• Max Load : 800W
MAGNETIC DOOR SENSOR
• Wired
• Low power consumption
• Output : NC/NO/COM
• Operating Distance : 15-20mm
• Installation : Flush Mount
Wireless sensors

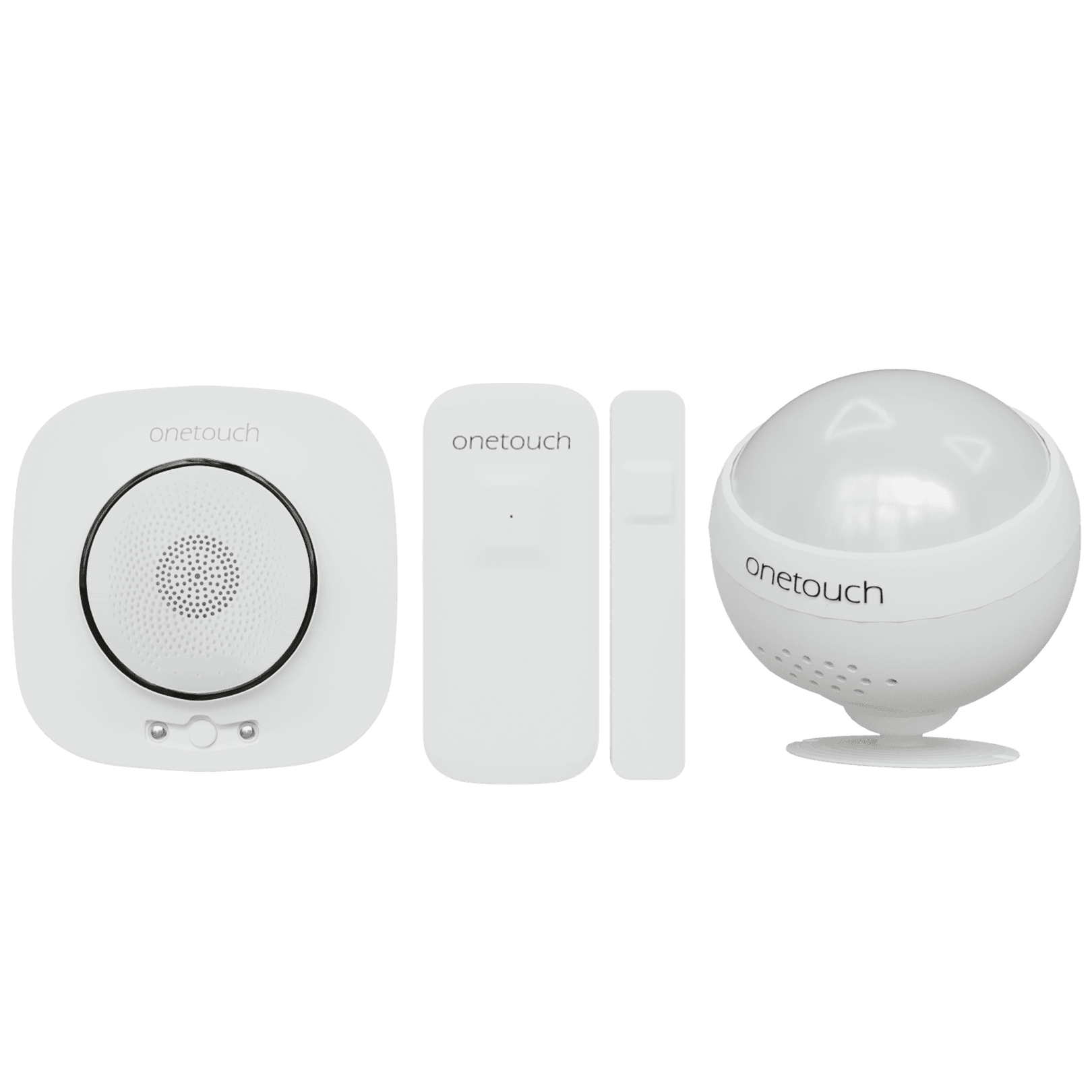

Function : Controller with hooter and sensors
Kit contains
- Main Control Panel (433 Mhz)– 1 no.
- Magnetic Door Contact (433 Mhz)– 1 nos
- Motion Sensor(433 Mhz) – 1 nos
- SOS Pendant (433 Mhz) – 2 nos
Output: 119 DB hooting
Connectivity : Wifi – 2.4Ghz ,802.11b/g/n
RF -433.92Mhz
Power – 230V
Security Mode –WPA/WPA2
Voice Assisstant : Alexa,Google
Material Built : ABS + PVC Material
Wireless Magnetic Door Contact
Function : Magnetic Door Contact
Wifi – RF 433Mhz
Battery – Cr7 battery (life upto 6 months)
Power – 0.5W
Antenna – 2dbi
Temperature : 0 °C ~ +50 °C
Humidity :< 90%
Installation : Wall Mount using 3M tape
Weight :30Gms
Tamper resistant
Material Built : ABS + PVC Material

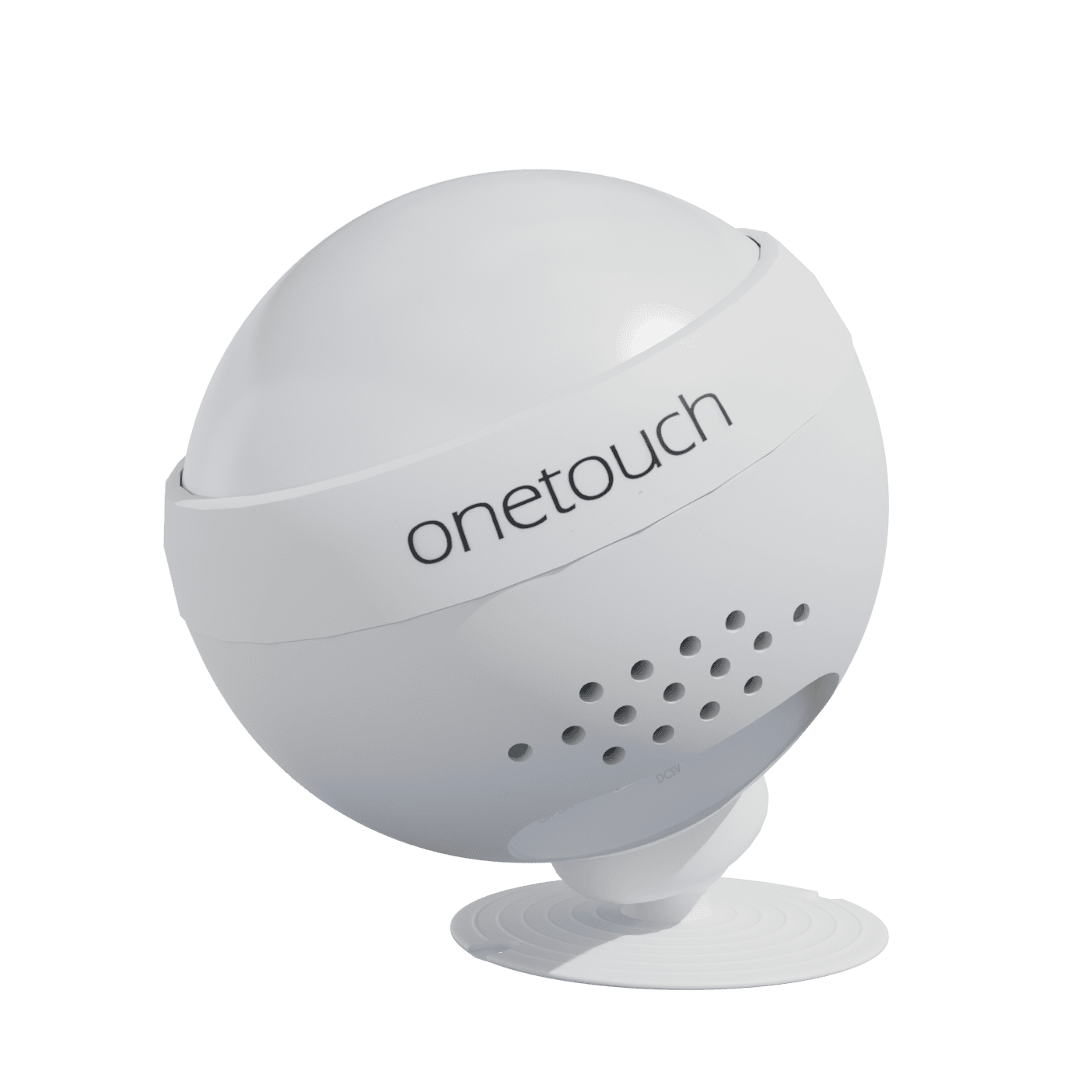

Wireless Motion Sensor
Function : PIR
Wifi : RF 433Mhz
Battery : Cr7 battery (life upto 6 months)
Power : 0.5W
Antennae : 2 dbi
Temperature : -20 °C ~ +50 °C
Humidity :<90%
Installation: Wall Mount with 3M tape
Wt : 20Gms
Material Built : ABS + PVC Material
Tamper Resistant
Sensitivity : Upto 5 meters
